Form Builder Plugin

Visual drag-and-drop form builder with JSON Schema storage and public form rendering

The Form Builder plugin provides a visual drag-and-drop form creation interface where administrators can create forms that are serialized and stored as JSON Schema. This is distinct from the CMS plugin - while CMS uses developer-defined Zod schemas, Form Builder allows non-technical administrators to create forms dynamically.

Key Features:

Visual Form Builder - Drag-and-drop interface for creating forms with various field types
JSON Schema Storage - Forms are serialized to JSON Schema for database persistence
Public Form Rendering - Render forms by slug on the frontend with automatic validation
Submission Tracking - Store and view form submissions with IP address and user agent logging
Backend Hooks - Lifecycle hooks for authentication, rate limiting, and integrations

Installation

Ensure you followed the general framework installation guide first.

1. Add Plugin to Backend API

lib/better-stack.ts

import { betterStack } from "@btst/stack"
import { formBuilderBackendPlugin } from "@btst/stack/plugins/form-builder/api"

const { handler, dbSchema } = betterStack({
  basePath: "/api/data",
  plugins: {
    formBuilder: formBuilderBackendPlugin({
      hooks: {
        // Authentication - check if user can access admin pages
        onBeforeListForms: async (ctx) => {
          const session = await getSession(ctx.headers)
          return session?.user?.isAdmin === true
        },
        onBeforeFormCreated: async (data, ctx) => {
          const session = await getSession(ctx.headers)
          if (!session?.user?.isAdmin) return false
          return data
        },
        // Rate limiting for public submissions
        onBeforeSubmission: async (formSlug, data, ctx) => {
          // Check rate limit by IP
          const isAllowed = await checkRateLimit(ctx.ipAddress, formSlug)
          if (!isAllowed) return false
          return data
        },
        // Post-submission actions
        onAfterSubmission: async (submission, form, ctx) => {
          // Send notification email
          await sendEmail({
            to: "admin@example.com",
            subject: `New submission: ${form.name}`,
            body: JSON.stringify(JSON.parse(submission.data), null, 2),
          })
          // CRM integration
          await updateCRM(submission.data)
        },
      },
    })
  },
  adapter: (db) => createMemoryAdapter(db)({})
})

export { handler, dbSchema }

2. Add Plugin to Client

lib/better-stack-client.tsx

import { createStackClient } from "@btst/stack/client"
import { formBuilderClientPlugin } from "@btst/stack/plugins/form-builder/client"
import { QueryClient } from "@tanstack/react-query"

const getBaseURL = () =>
  process.env.BASE_URL || "http://localhost:3000"

export const getStackClient = (queryClient: QueryClient, options?: { headers?: Headers }) => {
  const baseURL = getBaseURL()
  return createStackClient({
    plugins: {
      "form-builder": formBuilderClientPlugin({
        apiBaseURL: baseURL,
        apiBasePath: "/api/data",
        siteBaseURL: baseURL,
        siteBasePath: "/pages",
        queryClient: queryClient,
        headers: options?.headers,
        hooks: {
          beforeLoadFormList: async (context) => {
            const session = await getSession(context.headers)
            return session?.user?.isAdmin === true
          },
          beforeLoadFormBuilder: async (formId, context) => {
            const session = await getSession(context.headers)
            return session?.user?.isAdmin === true
          },
          beforeLoadSubmissions: async (formId, context) => {
            const session = await getSession(context.headers)
            return session?.user?.isAdmin === true
          },
          onLoadError: (error, context) => {
            redirect("/auth/sign-in")
          },
        },
      })
    }
  })
}

3. Configure Provider Overrides

Add Form Builder overrides to your layout:

app/pages/layout.tsx

import type { FormBuilderPluginOverrides } from "@btst/stack/plugins/form-builder/client"

type PluginOverrides = {
  "form-builder": FormBuilderPluginOverrides,
}

<BetterStackProvider<PluginOverrides>
  basePath="/pages"
  overrides={{
    "form-builder": {
      apiBaseURL: baseURL,
      apiBasePath: "/api/data",
      navigate: (path) => router.push(path),
      refresh: () => router.refresh(),
      Link: ({ href, ...props }) => <Link href={href || "#"} {...props} />,
      // Optional file upload for file fields
      uploadFile: async (file) => {
        // Your file upload logic
        return "https://example.com/file.pdf"
      },
      // Lifecycle hooks
      onRouteRender: async (routeName, context) => {
        console.log(`Form Builder route:`, routeName)
      },
      onRouteError: async (routeName, error, context) => {
        console.error(`Form Builder error:`, routeName, error.message)
      },
    }
  }}
>
  {children}
</BetterStackProvider>

4. Import CSS

Add the Form Builder styles to your global CSS:

app/globals.css

@import "@btst/stack/plugins/form-builder/css";

Admin Routes

The Form Builder plugin provides these admin routes:

Route	Description

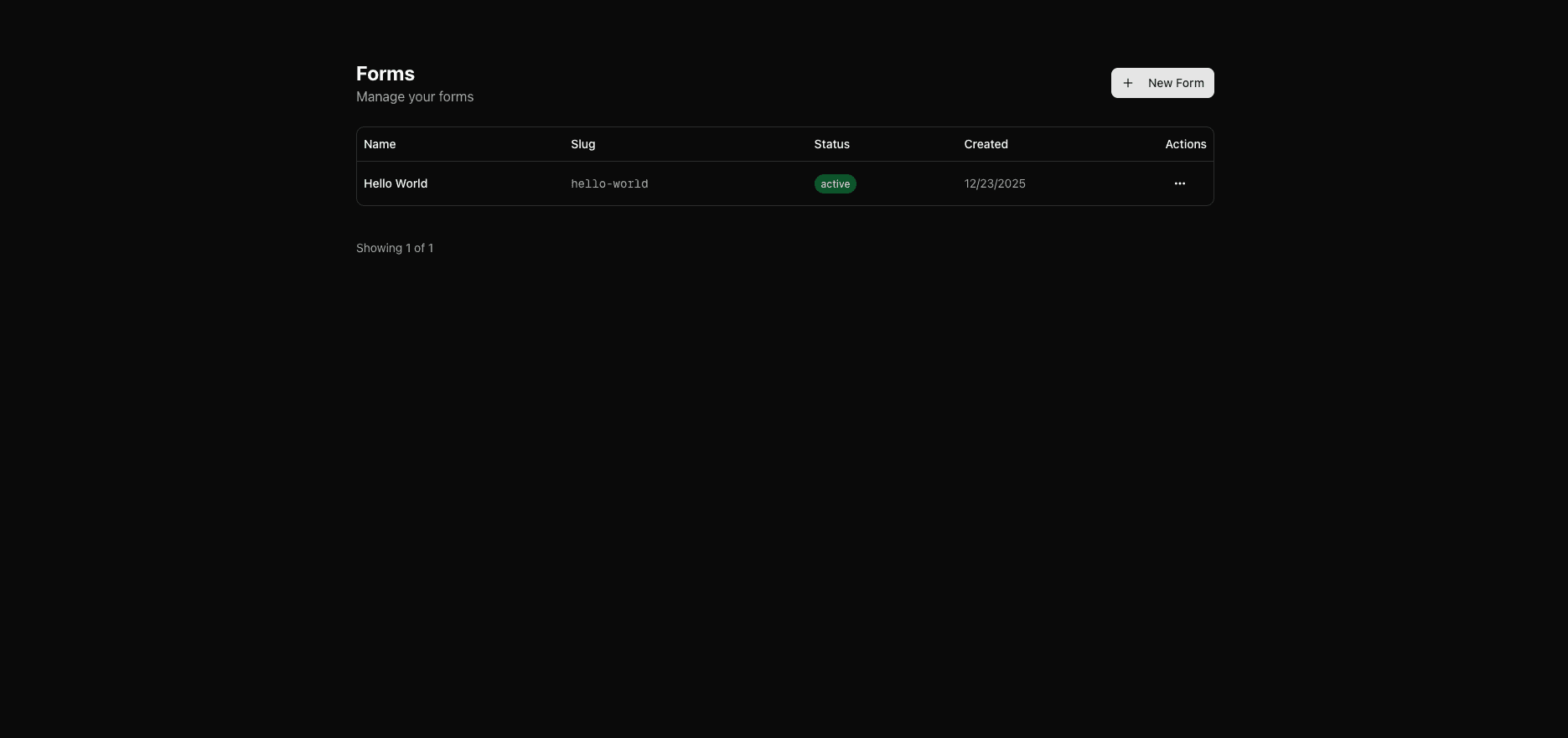

`/forms`	List all forms with create, edit, delete actions
`/forms/new`	Create a new form with the visual form builder
`/forms/:id/edit`	Edit an existing form

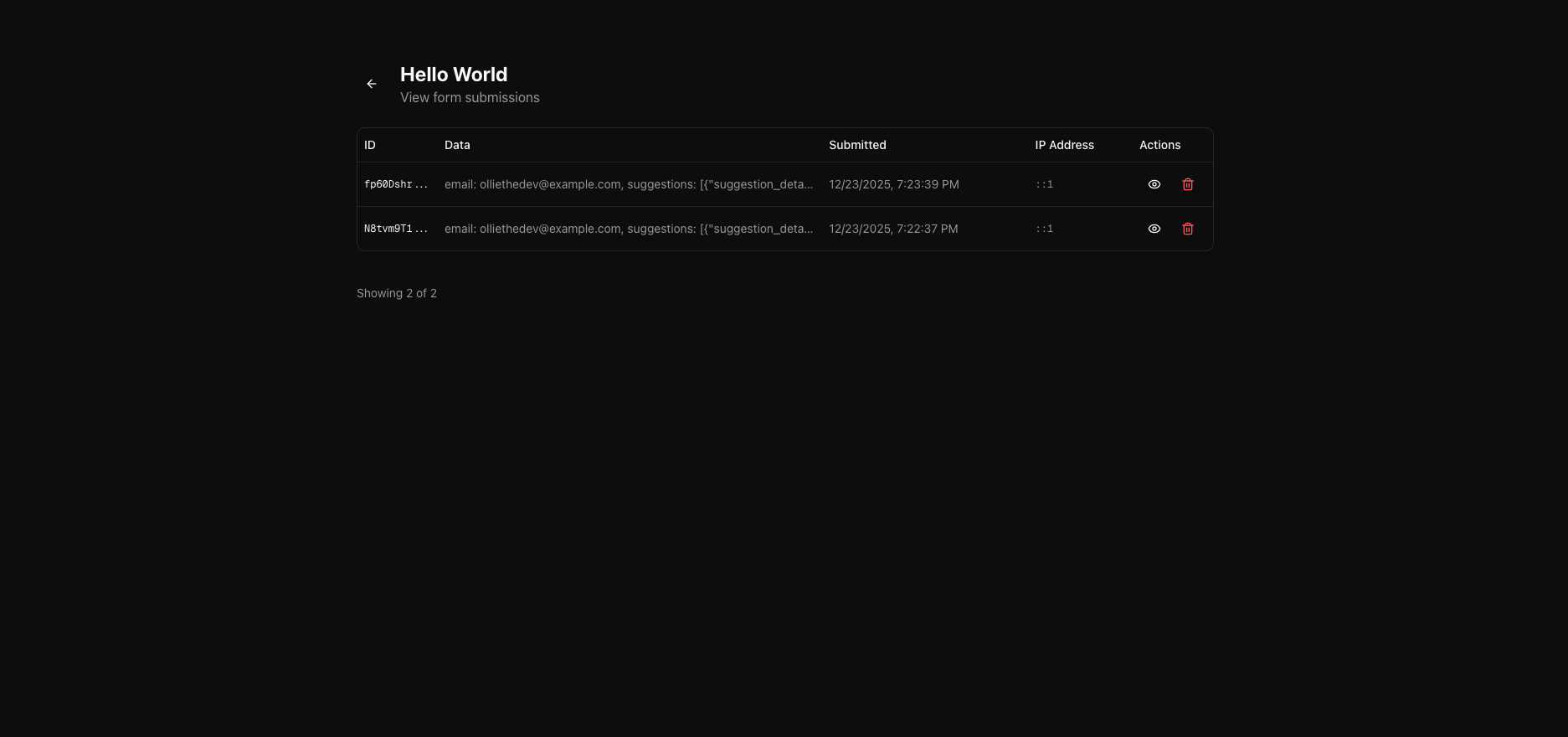

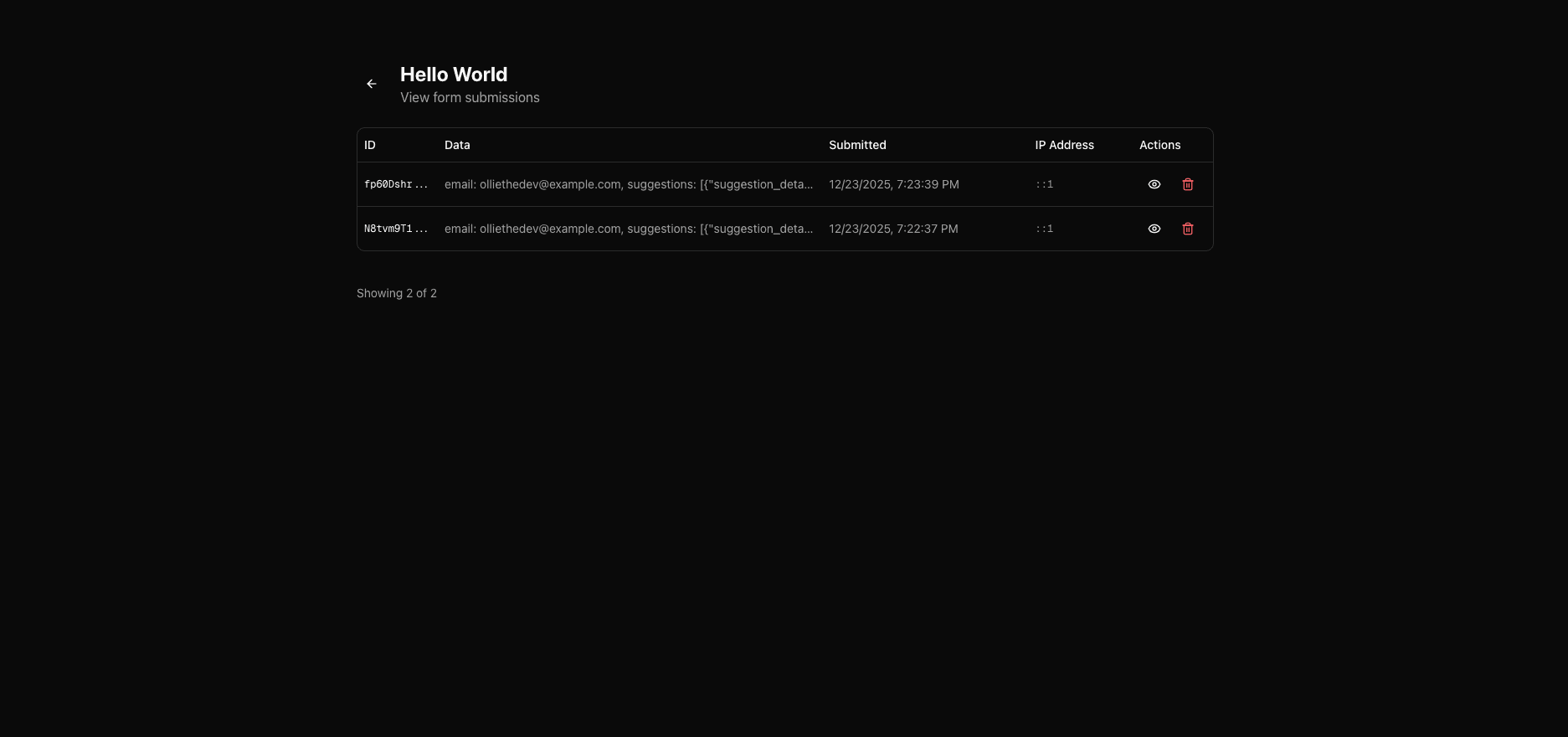

`/forms/:id/submissions`	View submissions for a form

Admin routes are automatically set to noindex for SEO. Don't include them in your public sitemap.

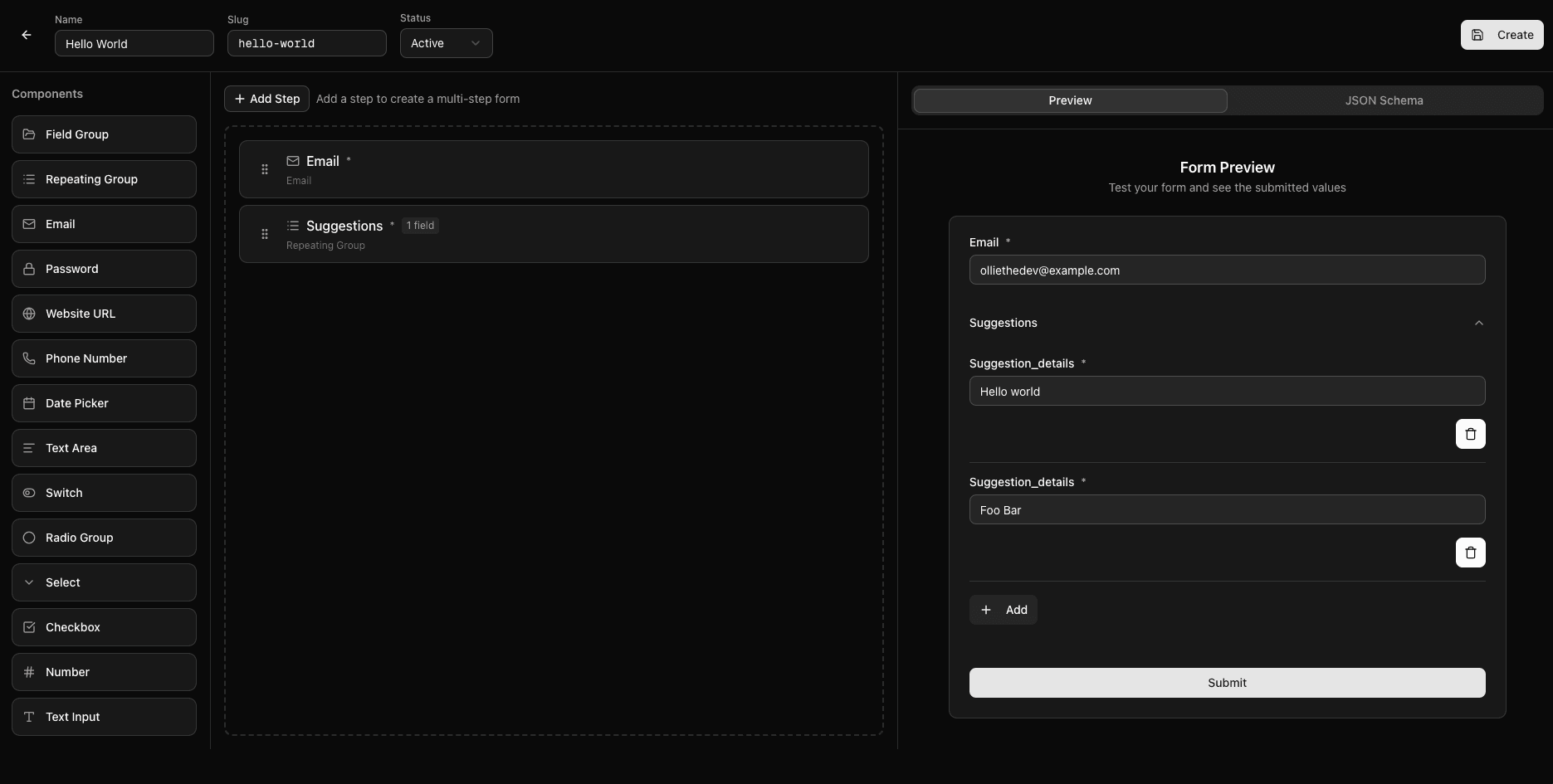

Form Builder UI

The form builder provides a drag-and-drop interface with:

Component Palette - Available field types to drag onto the canvas
Canvas - Where you build your form by arranging fields
Preview Tab - Live preview of how the form will look
JSON Schema Tab - View the generated JSON Schema

Available Field Types

Field Type	Description	JSON Schema Properties
Text Input	Single-line text field	`type: "string"`
Email	Email input with validation	`type: "string", format: "email"`
Password	Password input	`type: "string", fieldType: "password"`
Number	Numeric input	`type: "number"` with `minimum`/`maximum`
Text Area	Multi-line text field	`type: "string", fieldType: "textarea"`
Select	Dropdown selection	`type: "string", enum: [...]`
Checkbox	Boolean checkbox	`type: "boolean"`
Switch	Toggle switch	`type: "boolean", fieldType: "switch"`
Radio Group	Radio button group	`type: "string", enum: [...], fieldType: "radio"`
Date Picker	Date selection	`type: "string", format: "date-time"`
Phone	Phone number input	`type: "string", fieldType: "phone"`
URL	Website URL input	`type: "string", format: "uri"`

Field Properties

Each field can be configured with:

Property	Description
Label	Display label for the field
Field Name	The property key in the JSON Schema
Description	Help text shown below the field
Placeholder	Placeholder text in the input
Required	Whether the field is required
Min/Max	Minimum and maximum values (numbers) or length (strings)
Options	For select, radio, and checkbox groups
Default Value	Pre-filled value for the field

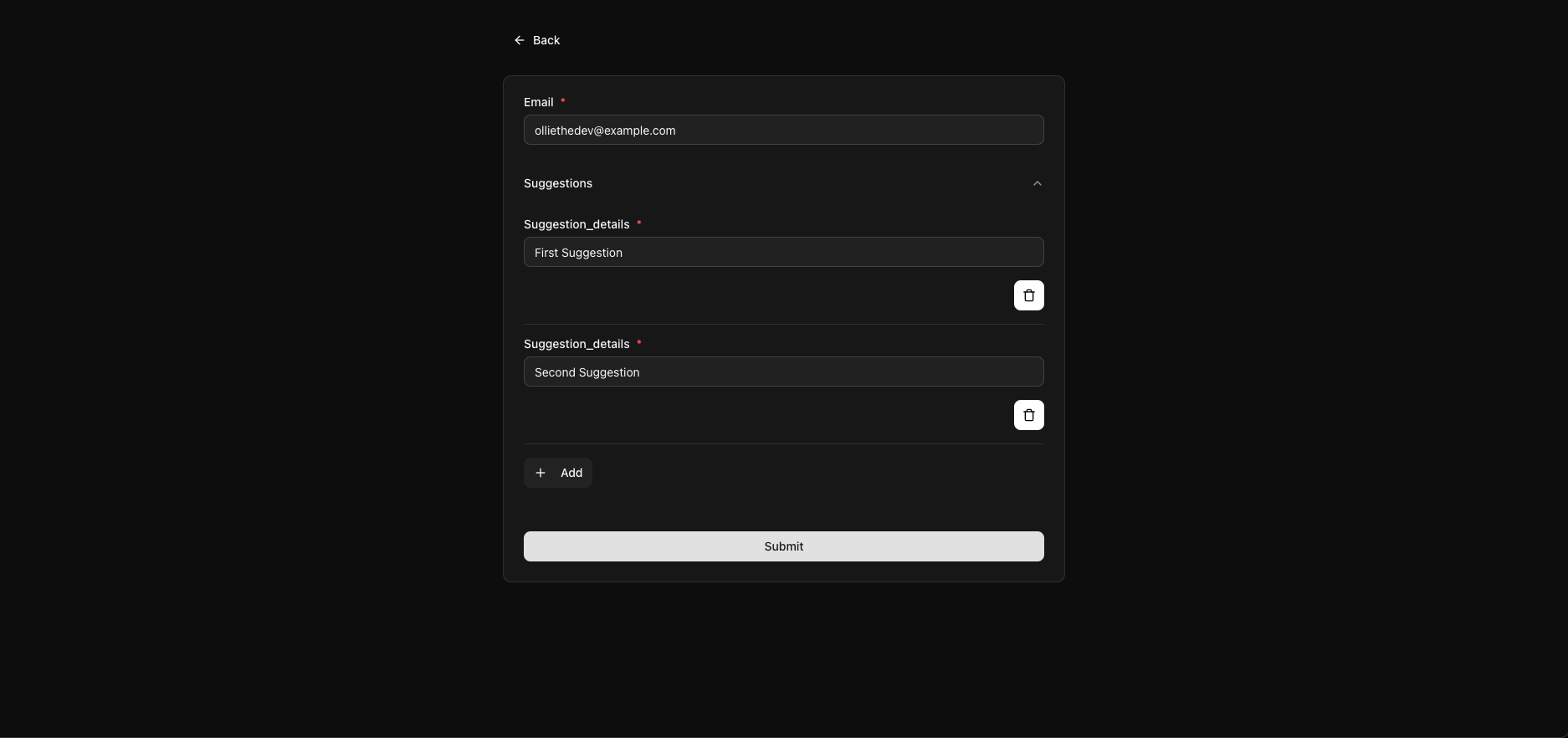

Public Form Rendering

The FormRenderer component allows you to render forms on public pages by their slug:

app/form-demo/[slug]/page.tsx

"use client"

import { FormRenderer } from "@btst/stack/plugins/form-builder/client/components"

export default function FormDemoPage({ params }: { params: { slug: string } }) {
  return (
    <div className="max-w-2xl mx-auto p-6">
      <FormRenderer
        slug={params.slug}
        onSuccess={(submission) => {
          console.log("Form submitted:", submission)
          // submission.form contains successMessage and redirectUrl
        }}
        onError={(error) => {
          console.error("Submission error:", error)
        }}
        // Optional: Custom loading/error states
        LoadingComponent={() => <div>Loading form...</div>}
        ErrorComponent={({ error }) => (
          <div>Form not found: {error.message}</div>
        )}
        // Optional: Custom submit button text
        submitButtonText="Send Message"
        // Optional: Custom success message (overrides form's successMessage)
        successMessage="Thanks for your submission!"
        className="space-y-6"
      />
    </div>
  )
}

FormRenderer Props

Prop	Type	Description
`slug`	`string`	Form slug to fetch and render
`onSuccess`	`(submission) => void`	Callback after successful submission (submission.form has success info)
`onError`	`(error) => void`	Callback when submission fails
`LoadingComponent`	`ComponentType`	Custom loading state
`ErrorComponent`	`ComponentType<{ error: Error }>`	Custom error state
`submitButtonText`	`string`	Custom submit button text
`successMessage`	`string`	Override the form's success message
`fieldComponents`	`Record<string, ComponentType>`	Custom field components
`className`	`string`	Additional CSS classes

The FormRenderer uses SteppedAutoForm internally, which automatically handles both single-step and multi-step forms based on the JSON Schema structure.

Client Hooks

Access form data in your frontend using the provided hooks:

Available Hooks

Hook	Description	Returns
`useFormsAdmin()`	List all forms (admin)	`{ forms, total, isLoading, error, refetch }`
`useFormBySlug(slug)`	Get form by slug (public)	`{ form, isLoading, error }`
`useSuspenseFormById(id)`	Get form by ID with Suspense	`{ form, refetch }`
`useCreateForm()`	Create mutation	React Query mutation
`useUpdateForm()`	Update mutation	React Query mutation
`useDeleteForm()`	Delete mutation	React Query mutation
`useSubmitForm(slug)`	Submit form data	React Query mutation
`useSubmissions(formId)`	List submissions for a form	`{ submissions, total, isLoading }`
`useDeleteSubmission(formId)`	Delete submission	React Query mutation

Usage Examples

import {
  useFormBySlug,
  useSubmitForm,
  useFormsAdmin
} from "@btst/stack/plugins/form-builder/client/hooks"

// Public: Fetch form by slug
function ContactPage() {
  const { form, isLoading } = useFormBySlug("contact-form")
  const submitForm = useSubmitForm("contact-form")

  if (isLoading || !form) return <Loading />

  return (
    <AutoForm
      schema={JSON.parse(form.schema)}
      onSubmit={async (data) => {
        await submitForm.mutateAsync({ data })
      }}
    />
  )
}

// Admin: List all forms
function FormsAdmin() {
  const { forms, total, isLoading } = useFormsAdmin()

  return (
    <ul>
      {forms.map(form => (
        <li key={form.id}>{form.name} - {form.status}</li>
      ))}
    </ul>
  )
}

Backend Hooks

Customize Form Builder behavior with backend lifecycle hooks:

FormBuilderBackendHooks

formBuilderBackendPlugin({
  hooks: {
    // Form CRUD authorization
    onBeforeListForms: async (ctx) => {
      // Return true to allow, false to deny
      return isAdmin(ctx.headers)
    },
    onBeforeFormCreated: async (data, ctx) => {
      // Return false to deny, or modified data to allow
      return data
    },
    onBeforeFormUpdated: async (formId, data, ctx) => {
      return data
    },
    onBeforeFormDeleted: async (formId, ctx) => {
      return true
    },

    // Form lifecycle
    onAfterFormCreated: async (form, ctx) => {
      console.log("Form created:", form.name)
    },
    onAfterFormUpdated: async (form, ctx) => {
      console.log("Form updated:", form.name)
    },
    onAfterFormDeleted: async (formId, ctx) => {
      console.log("Form deleted:", formId)
    },

    // Submission authorization and processing
    onBeforeSubmission: async (formSlug, data, ctx) => {
      // Access IP and user agent for rate limiting
      console.log("Submission from:", ctx.ipAddress, ctx.userAgent)

      // Rate limiting example
      const allowed = await checkRateLimit(ctx.ipAddress, formSlug)
      if (!allowed) return false

      // Spam filtering
      if (containsSpam(data)) return false

      return data
    },
    onAfterSubmission: async (submission, form, ctx) => {
      // Send email notifications
      await sendEmail({
        to: "admin@example.com",
        subject: `New ${form.name} submission`,
        body: formatSubmission(submission.data),
      })

      // CRM integration
      await pushToCRM(submission, form)

      // Webhook
      await triggerWebhook(form.webhookUrl, submission)
    },

    // Submissions list authorization
    onBeforeListSubmissions: async (formId, ctx) => {
      return isAdmin(ctx.headers)
    },
    onBeforeDeleteSubmission: async (submissionId, ctx) => {
      return isAdmin(ctx.headers)
    },

    // Error handling
    onFormError: async (error, operation, ctx) => {
      console.error(`Form ${operation} error:`, error.message)
    },
    onSubmissionError: async (error, formSlug, ctx) => {
      console.error(`Submission to ${formSlug} error:`, error.message)
    },
  },
})

Hook Context

All hooks receive a context object with:

Property	Type	Description
`headers`	`Headers`	Request headers for auth
`userId`	`string \| undefined`	Authenticated user ID if available
`ipAddress`	`string \| undefined`	Client IP address
`userAgent`	`string \| undefined`	Client user agent

Client Hooks (SSR Authorization)

Use hooks in the client plugin config for async authorization during SSR:

lib/better-stack-client.tsx

import { redirect } from "next/navigation"

"form-builder": formBuilderClientPlugin({
  // ... config
  hooks: {
    beforeLoadFormList: async (context) => {
      const session = await getSession(context.headers)
      return session?.user?.isAdmin === true
    },
    beforeLoadFormBuilder: async (formId, context) => {
      // formId is undefined for new forms
      const session = await getSession(context.headers)
      return session?.user?.isAdmin === true
    },
    beforeLoadSubmissions: async (formId, context) => {
      const session = await getSession(context.headers)
      return session?.user?.isAdmin === true
    },
    afterLoadFormList: async (forms, context) => {
      console.log("Loaded", forms?.length, "forms")
      return true
    },
    onLoadError: (error, context) => {
      // Redirect on authorization failure
      redirect("/auth/sign-in")
    },
  },
})

Use client hooks for SSR. These hooks run during server-side data loading and support async operations like session checks. The onLoadError hook is called when any beforeLoad* hook returns false, allowing you to redirect unauthorized users.

API Endpoints

The Form Builder plugin exposes these REST endpoints:

Endpoint	Method	Description
`/form-builder/forms`	GET	List all forms (query: `limit`, `offset`, `status`)
`/form-builder/forms`	POST	Create a new form
`/form-builder/forms/:slug`	GET	Get form by slug
`/form-builder/forms/:id`	PUT	Update a form
`/form-builder/forms/:id`	DELETE	Delete a form
`/form-builder/forms/:slug/submit`	POST	Submit form data
`/form-builder/forms/:id/submissions`	GET	List submissions for a form
`/form-builder/submissions/:id`	DELETE	Delete a submission

Form Schema Structure

Forms are stored with this schema:

interface Form {
  id: string
  name: string          // Display name
  slug: string          // URL-friendly identifier
  schema: string        // JSON Schema as string
  successMessage?: string  // Message shown after submission
  redirectUrl?: string     // URL to redirect after submission
  status: "draft" | "published"
  createdAt: Date
  updatedAt: Date
}

interface FormSubmission {
  id: string
  formId: string        // Reference to form
  data: string          // Submitted data as JSON string
  ipAddress?: string    // Client IP
  userAgent?: string    // Client user agent
  createdAt: Date
}

Multi-Step Forms

The Form Builder supports multi-step forms through JSON Schema's allOf structure:

{
  "type": "object",
  "allOf": [
    {
      "title": "Step 1: Personal Info",
      "properties": {
        "name": { "type": "string", "label": "Full Name" },
        "email": { "type": "string", "format": "email" }
      }
    },
    {
      "title": "Step 2: Details",
      "properties": {
        "company": { "type": "string" },
        "message": { "type": "string", "fieldType": "textarea" }
      }
    }
  ]
}

The SteppedAutoForm component automatically renders this as a multi-step wizard with navigation.

Custom Field Components

Provide custom field components via the fieldComponents prop on FormRenderer:

import type { AutoFormInputComponentProps } from "@btst/stack/plugins/form-builder/client"

function CustomRating({ field, label }: AutoFormInputComponentProps) {
  return (
    <div>
      <label>{label}</label>
      <StarRating
        value={field.value}
        onChange={field.onChange}
      />
    </div>
  )
}

<FormRenderer
  slug="feedback"
  fieldComponents={{
    rating: CustomRating,
    richText: MyRichTextEditor,
  }}
/>

API Reference

Backend (`@btst/stack/plugins/form-builder/api`)

formBuilderBackendPlugin

Creates the backend plugin with optional hooks configuration.

FormBuilderBackendHooks

Hook	Parameters	Return	Description
`onBeforeListForms`	`ctx`	`boolean`	Authorization for listing forms
`onBeforeFormCreated`	`data, ctx`	`data \| false`	Validate/transform before create
`onAfterFormCreated`	`form, ctx`	`void`	Post-create lifecycle
`onBeforeFormUpdated`	`id, data, ctx`	`data \| false`	Validate/transform before update
`onAfterFormUpdated`	`form, ctx`	`void`	Post-update lifecycle
`onBeforeFormDeleted`	`id, ctx`	`boolean`	Authorization for delete
`onAfterFormDeleted`	`id, ctx`	`void`	Post-delete lifecycle
`onBeforeSubmission`	`slug, data, ctx`	`data \| false`	Validate/rate limit submissions
`onAfterSubmission`	`submission, form, ctx`	`void`	Post-submission actions
`onBeforeListSubmissions`	`formId, ctx`	`boolean`	Authorization for listing
`onBeforeDeleteSubmission`	`id, ctx`	`boolean`	Authorization for delete
`onFormError`	`error, operation, ctx`	`void`	Handle form operation errors
`onSubmissionError`	`error, slug, ctx`	`void`	Handle submission errors

Client (`@btst/stack/plugins/form-builder/client`)

formBuilderClientPlugin

Creates the client plugin with routes and SSR loaders.

FormBuilderPluginOverrides

Property	Type	Required	Description
`apiBaseURL`	`string`	Yes	Base URL for API requests
`apiBasePath`	`string`	Yes	API path prefix
`navigate`	`(path: string) => void`	Yes	Navigation function
`Link`	`ComponentType`	No	Link component
`refresh`	`() => void`	No	Refresh function
`uploadFile`	`(file: File) => Promise<string>`	No	File upload handler
`fieldComponents`	`Record<string, ComponentType>`	No	Custom field components
`localization`	`FormBuilderLocalization`	No	Custom labels
`showAttribution`	`boolean`	No	Show Better Stack attribution
`onRouteRender`	`(route, context) => void`	No	Lifecycle hook
`onRouteError`	`(route, error, context) => void`	No	Error hook

FormBuilderClientHooks

Hook	Parameters	Return	Description
`beforeLoadFormList`	`context`	`boolean \| Promise<boolean>`	SSR auth for forms list
`afterLoadFormList`	`forms, context`	`boolean`	Post-load hook
`beforeLoadFormBuilder`	`formId, context`	`boolean \| Promise<boolean>`	SSR auth for builder
`afterLoadFormBuilder`	`form, context`	`boolean`	Post-load hook
`beforeLoadSubmissions`	`formId, context`	`boolean \| Promise<boolean>`	SSR auth for submissions
`afterLoadSubmissions`	`submissions, context`	`boolean`	Post-load hook
`onLoadError`	`error, context`	`void`	Handle auth failures

Schema Converter Utilities (`@btst/stack/plugins/form-builder/client`)

The Form Builder plugin re-exports schema converter utilities for converting between Zod schemas and JSON Schema. These are useful when working with form schemas programmatically:

zodToFormSchema

Convert a Zod schema to JSON Schema with proper handling for dates, steps metadata, and date constraints:

Prop

Type

Example:

import { zodToFormSchema } from "@btst/stack/plugins/form-builder/client"

const jsonSchema = zodToFormSchema(ContactFormSchema, {
  steps: [
    { id: "personal", title: "Personal Information" },
    { id: "message", title: "Your Message" }
  ],
  stepGroupMap: {
    name: 0,
    email: 0,
    message: 1
  }
})

formSchemaToZod

Convert JSON Schema back to a Zod schema with proper handling for date fields, constraints, and steps metadata. This is used internally by FormRenderer to validate form submissions:

Prop

Type

Example:

import { formSchemaToZod } from "@btst/stack/plugins/form-builder/client"

// Convert JSON Schema from database to Zod for validation
const zodSchema = formSchemaToZod(jsonSchema)
const result = zodSchema.safeParse(submissionData)

Utility Functions

Prop

Type

Prop

Type

Prop

Type

Types

Prop

Type

Prop

Type

On this page
